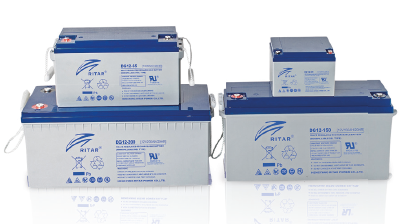

Ritar

Ritar’s product suite covers a range of industries and applications such as telecommunications, electric vehicles, UPS, inverters, forklifts and solar. Their design philosophy is based on the premise of safe and intelligent power and is demonstrated in the high-level construction and power output of their lead-acid batteries.

Research and development have led to Ritar producing innovative solutions that cater to many applications. Ritar has engineered every aspect of their energy storage, motive, solar and reserve power batteries to provide high-performing products. Featuring lead acid, gel and lithium batteries Ritar is at the forefront of battery technology.

Ritar Lithium

12.8V Lithium Iron Phosphate Battery

SAFETY

l  LiFePO4 cells, high consistency, long cycle life and much more safety.

l  UN38.3, CE certification for system.

DESIGN

l  ABS container, replace VRLA battery perfectly.

l  Fast charge performance.

l  -20~+55° C widely temperature range.

l  Maintenance free.

BATTERY MANAGEMENT SYSTEM

l  Integrated hardware BMS inside.

l  Independent protection for charge and discharge.

l  Over voltage, low voltage, over temperature and short circuit protection.

MODELRATED VOLTAGERATED CAPACITYDIMENSIONSTERMINAL
(V)(Ah) Length (mm)Width (mm)Height (mm)Weight (Kg)
12.8V40Ah 12.8 40 198 166 169 4.96 M6
12.8V100Ah 12.8 100 306 168 210 12.9 M8
12.8V135Ah 12.8 135 330 172 214 14.06 M8
12.8V200Ah 12.8 200 522 240 219 22.86 M8

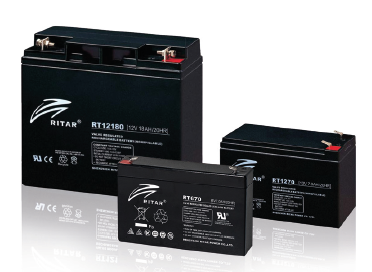

RT SERIES

AGM VRLA Batteries

RT series is a general purpose battery with 6~8 years design life in float service . It meets with IEC and JIS standards .With up-dated AGM valve regulated technology and high purity raw materials, the RT series battery has reliable standby service life.
It is suitable for UPS/EPS, medical equipment, emergency light and security systems applications.

  • >

    Voltage class:  6V/12V

  • >
    Capacity range: 1.3Ah~28Ah

  • >
    Long design life

  • >
    Low self-discharge rate

  • >
    Good high rate discharge performance

  • >
    Wide operation temperature range

  • >
    Application: small UPS, emergency light, security systems, toys, medical, etc.

  • >
    Good high rate discharge performance
  • >
    Two or more types of terminals for convenient selection
  • >
    Compact design
  • >
    Double sealed terminals

MODEL NOMINAL VOLTAGE CAPACITY DIMENSIONS WET WEIGHT (KG) TERMINAL
(V) C20/1.75VPC (Ah) Length Width Height Total Height (Kg) (Lbs)
mm inch mm inch mm inch mm inch
RT613 6 1.3 97 3.82  24 0.94  52 2.05  58 2.28  0.30  0.66  F1
RT628 6 2.8 66.5 2.62  34 1.34  97 3.82  103 4.06  0.53  1.17  F1
RT632 6 3.2 134 5.28  34 1.34  60 2.36  66 2.60  0.60  1.32  F1
RT636 6 3.6 194 7.64  25 0.98  62 2.44  62 2.44  0.65  1.43  T1
RT640S 6 4 194 7.64  25 0.98  62 2.44  62 2.44  0.75  1.65  T1
RT640 6 4 70 2.76  47 1.85  99 3.90  105 4.13  0.60  1.32  F1
RT645 6 4.5 70 2.76  47 1.85  99 3.90  105 4.13  0.65  1.43  F1
RT650 6 5 70 2.76  47 1.85  99 3.90  105 4.13  0.70  1.54  F1/F2
RT670 6 7 151 5.94  34 1.34  94 3.70  100 3.94  1.00  2.20  F1/F2
RT680 6 8 151 5.94  34 1.34  94 3.70  100 3.94  1.05  2.31  F1/F2
RT6100 6 10 150 5.91  50 1.97  93 3.66  99 3.90  1.62  3.57  F1/F2
RT6100A 6 10 150 5.91  50 1.97  93 3.66  99 3.90  1.48  3.26  F1/F2
RT6120 6 12 150 5.91  50 1.97  93 3.66  99 3.90  1.75  3.86  F1/F2
RT6120A 6 12 150 5.91  50 1.97  93 3.66  99 3.90  1.60  3.53  F1/F2
RT6140 6 14 108 4.25 71 2.8 140 5.51 140 5.51 2.27 5 F1/F2
RT1213 12 1.3 98 3.86  43.5 1.71  53 2.09  59 2.32  0.52  1.15  F1
RT1223 12 2.3 177 6.97  35 1.38  62 2.44  68 2.68  0.85  1.87  F1
RT1232 12 3.2 134 5.28  67 2.64  60 2.36  66 2.60  1.25  2.76  F1
RT1236 12 2.9 102 4.02 49 1.93 65 2.56 70.5 2.78 0.98 2.16 F1/F2
RT1240 12 4 90 3.54  70 2.76  101 3.98  107 4.21  1.20  2.65  F1/F2
RT1245 12 4.5 90 3.54  70 2.76  101 3.98  107 4.21  1.30  2.87  F1/F2
RT1245U 12 4.5 151 5.94 65 2.56 94 3.7 100 3.94 1.45 3.2 F1/F2
RT1250 12 5 90 3.54  70 2.76  101 3.98  107 4.21  1.35  2.98  F1/F2
RT1250B 12 5 151 5.94  50 1.97  95 3.74  101 3.98  1.40  3.09  F1/F2
RT1270 12 7 151 5.94  65 2.56  94 3.70  100 3.94  1.95  4.30  F1/F2
RT1270A 12 7 151 5.94  65 2.56  94 3.70  100 3.94  1.90  4.19  F1/F2
RT1280 12 8 151 5.94  65 2.56  94 3.70  100 3.94  2.08  4.59  F1/F2
RT1290EP 12 9 151 5.94  65 2.56  94 3.70  100 3.94  2.55  5.62  F1/F2
RT1290 12 9 151 5.94  65 2.56  94 3.70  100 3.94  2.30  5.07  F1/F2
RT1290S 12 9 151 5.94  65 2.56  111 4.37  117 4.61  2.45  5.40  F1/F2
RT12100S 12 10 151 5.94  65 2.56  111 4.37  117 4.61  3.10  6.83  F1/F2
RT12100 12 10 151 5.94  98 3.86  95 3.74  101 3.98  3.15  6.94  F1/F2
RT12100A 12 10 151 5.94  98 3.86  95 3.74  101 3.98  2.90  6.39  F1/F2
RT12120 12 12 151 5.94  98 3.86  95 3.74  101 3.98  3.50  7.72  F1/F2
RT12120A 12 12 151 5.94  98 3.86  95 3.74  101 3.98  3.15  6.94  F1/F2
RT12180 12 18 181 7.13  77 3.03  167 6.57  167 6.57  5.00  11.02  F3(M5) / F13-BP(M5)
RT12180A 12 18 181 7.13  77 3.03  167 6.57  167 6.57  4.85  10.69  F3(M5) / F13-BP(M5)
RT12200 12 20 181 7.13  77 3.03  167 6.57  167 6.57  5.40  11.90  F3(M5) / F13-BP(M5)
RT12220 12 22 181 7.13  77 3.03  167 6.57  167 6.57  5.60  12.35  F3(M5) / F13-BP(M5)
RT12240 12 24 166 6.54  176 6.93  125 4.92  125 4.92  7.00  15.43  F3(M5) / F13-BP(M5)
RT12260 12 26 166 6.54  176 6.93 125 4.92  125 4.92  7.40  16.31  F3(M5) / F13-BP(M5)
RT12240S 12 24 165 6.50  125 4.92  174 6.85  174 6.85  7.40  16.31  T28(M5)/ F11(M6)
RT12280 12 28 166 6.54  176 6.93  125 4.92  125 4.92  8.10  17.86  F3(M5) / F13-BP(M5)/T24(M5)
RT12260S 12 26 165 6.50  125 4.92  174 6.85  174 6.85  8.30  18.30  F7(M8) / F11(M6)
RT12280S 12 28 165 6.50  125 4.92  174 6.85  174 6.85  8.80  19.40  F7(M8) / F11(M6)
RT1270EL 12 7 151 5.94  65 2.56  94 3.70  100 3.94  2.10  4.63  F1/F2
RT1270L 12 7 151 5.94  65 2.56  94 3.70  100 3.94  2.60  5.73  F1/F2
RT12120L 12 12 151 5.94  98 3.86  95 3.74  101 3.98  4.05  8.93  F1/F2
RT12170L 12 17 181 7.13  77 3.03  167 6.57  167 6.57  6.00  13.23  F3(M5) / F13-BP(M5)
RT12280L 12 28 166 6.54  176 6.93  125 4.92  125 4.92  8.60  18.96  F3(M5) / F13-BP(M5)

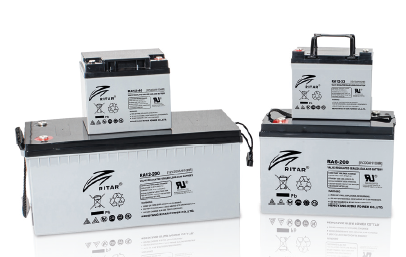

RA SERIES

AGM VRLA Batteries

RA series is a general purpose battery with 12 years design life in float service. It meets with IEC, JIS and BS standards .With up-dated AGM valve regulated technology and high purity raw materials, the RA series battery maintains high consistency for better performance and reliable standby service life.
It is suitable for UPS/EPS, medical equipment, emergency light and security system applications.

  • >

    Voltage class: 6V/12V

  • >
    Capacity range: 33Ah~260Ah

  • >
    Long design life

  • >
    Low self-discharge rate

  • >
    Good high rate discharge performance

  • >
    Wide operation temperature range

  • >
    Application: telecom systems, fire & alarm systems, emergency systems, power tools, medical equipment, UPS/EPS, solar inverters/controllers, etc.

MODELNOMINAL VOLTAGECAPACITYDIMENSIONSWEIGHTTERMINAL
(V)(Ah) LengthWidthHeightTotal Height(Kg)(Lbs)
mminchmminchmminchmminch
RA6-100 6 100 194 7.64  170 6.69  205 8.07  212 8.35  16.0  35.27  F14(M8)
RA6-150 6 150 260 10.24  180 7.09  245 9.65  252 9.92  22.0  48.50  F12(M8)
RA6-180 6 180 306 12.05  168 6.61  220 8.66  227 8.94  24.5  54.01  F12(M8)
RA6-200 6 200 322 12.68  177.5 6.99  226 8.90  231 9.09  27.5 60.63  F16(M8) / F14(M8)
RA6-200S 6 200 260 10.24  180 7.09  245 9.65  252 9.92  26.5  58.42  F12(M8)
RA6-225 6 225 322 12.68  177.5 6.99  226 8.90  231 9.09  28.5  62.83  F16(M8) / F14(M8)
RA6-225S 6 225 243 9.57  187 7.36  275 10.83  275 10.83  32.0  70.55  F14(M8)
RA12-33 12 33 195 7.68  130 5.12  155 6.10  168 6.61  9.6  21.16 F7(M8) / F11(M6)
RA12-33A 12 33 195 7.68  130 5.12  155 6.10  168 6.61  9.0  19.84  F7(M8) / F11(M6)
RA12-35 12 35 195 7.68 130 5.12 155 6.1 168 6.61 10.5 23.15 F7(M8) / F11(M6)
RA12-40 12 40 198 7.80  166 6.54  169 6.65  169 6.65  11.5  25.35 F4(M5) / F11(M6)
RA12-45 12 45 198 7.80  166 6.54  169 6.65  169 6.65  12.5  27.5  F4(M5) / F11(M6)
RA12-55 12 55 229 9.02  138 5.43  211 8.31  216 8.50  15.5  34.17  F15(M6) / F11(M6)
RA12-60 12 60 260 10.24  169 6.65  211 8.31  216 8.50  18.5  40.78  F15(M6) / F11(M6)
RA12-65 12 65 350 13.78  167 6.57  182 7.17  182 7.17  18.5  40.78  F5(M8) / F11(M6)
RA12-70 12 70 350 13.78  167 6.57  182 7.17  182 7.17  19.5 42.99  F5(M8) / F11(M6)
RA12-70S 12 70 260 10.24  169 6.65  211 8.31  216 8.50  21.5  47.40  F15(M6) / F11(M6)
RA12-80S 12 80 260 10.24  169 6.65  211 8.31  216 8.50  22.0  48.50  F15(M6) / F11(M6)
RA12-80 12 80 350 13.78  167 6.57  182 7.17  182 7.17  21.5  47.40  F5(M8) / F11(M6)
RA12-100S 12 100 306.5 12.07  168.5 6.63  210 8.27  215 8.46  26.5 58.42 F15(M6) / F12(M8)
RA12-100 12 100 328 12.91  172 6.77  215 8.46  220 8.66  27.5  60.63  F5(M8) / F12(M8)
RA12-120 12 120 407 16.02  177 6.97  225 8.86  225 8.86  32.5  71.65  F5(M8) / F12(M8)
RA12-120S 12 110 328 12.91  172 6.77  215 8.46  220 8.66  29.0  63.93   F12(M8)
RA12-134 12 134 340 13.39  173 6.81  280 11.02  287 11.30  39.0  85.98  F5(M8) / F12(M8)
RA12-145 12 145 340 13.39  173 6.81  280 11.02  287 11.30  41.5 91.49  F5(M8) / F12(M8)
RA12-150 12 150 483 19.02  170 6.69  241 9.49  241 9.49  41.5  91.49 F5(M8) / F12(M8)
RA12-160 12 160 532 20.94  207 8.15  214 8.43  219 8.62  47.5  104.72  F16(M8) / F12(M8)
RA12-180 12 180 532 20.94  207 8.15  214 8.43  219 8.62  49.5 109.13 F16(M8) / F12(M8)
RA12-200 12 200 522 20.55  240 9.45  219 8.62  224 8.82  56.5 124.56  F16(M8) / F10(M8)
RA12-225 12 225 522 20.55  240 9.45  219 8.62  224 8.82  61.0  134.48  F16(M8) / F10(M8)
RA12-230 12 230 521 20.51  269 10.59  204 8.03  209 8.23  67.0  147.71  F10(M8)
RA12-240 12 240 522 20.55  240 9.45  219 8.62  224 8.82  65.0  143.30  F16(M8) / F10(M8)
RA12-260 12 260 521 20.51  268 10.55  220 8.66  225 8.86  70.0  154.32 F14(M8)

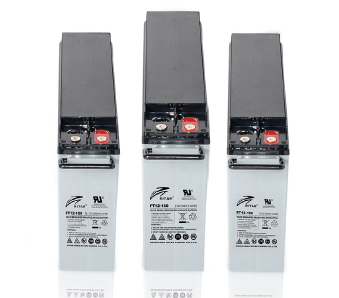

FT SERIES

Front Terminal VRLA Batteries

FT (Front Terminal) Series is specially designed for telecom use with 12 years design life in float service. By adopting a new AGM separator and centralised venting system, the battery can be installed in any position while maintaining high relaibility.  The dimensions of the FT series is designed for 19" and 23" cabinet installation. It is  suitable for UPS/EPS applications.

  • >

    Voltage class: 12V

  • >
    Capacity range: 55Ah~185Ah

  • >
    Designed for telecom use

  • >
    Long design life

  • >
    Low self-discharge rate

  • >
    Excellent high rate discharge performance

  • >
    Application: telecom systems, UPS/EPS, control systems, electric power systems, etc.

MODEL NOMINAL VOLTAGE CAPACITYDIMENSIONSWEIGHTTERMINAL
(V)(Ah) LengthWidthHeightTotal Height(Kg)(Lbs)
mminchmminchmminchmminch
FT12-55 12 55 291 11.46  106 4.17  230 9.06  230 9.06  18.0  39.68  F11(M6)
FT12-55A 12 55 291 11.46  106 4.17  230 9.06  230 9.06  16.8  37.04  F11(M6)
FT12-90 12 90 562 22.13  114 4.49  188 7.40  188 7.40  26.5  58.42  F6(M8)
FT12-90A 12 90 562 22.13  114 4.49  188 7.40  188 7.40  24.0  52.91  F6(M8)
FT12-100 12 100 508 20.00  110 4.33  236 9.29  236 9.29  28.5  62.83  F14(M8)
FT12-100A 12 100 508 20.00  110 4.33  236 9.29  236 9.29  27.0  59.52  F14(M8)
FT12-100S 12 100 410 16.14  109 4.29  285 11.22  293 11.54 31.0  68.34  F9(M8)
FT12-100SA 12 100 410 16.14  109 4.29  285 11.22  293 11.54  28.5  62.83  F9(M8)
FT12-105 12 105 508 20.00  110 4.33  236 9.29  236 9.29  32.5  71.65  F14(M8)/F8(M6)
FT12-105A 12 105 508 20.00  110 4.33  236 9.29  236 9.29  29.0  63.93  F14(M8)/F8(M6)
FT12-110 12 110 410 16.14  109 4.29  285 11.22  293 11.54  31.2  68.78  F9(M8)
FT12-110A 12 110 410 16.14  109 4.29  285 11.22  293 11.54  29.5  65.04  F9(M8)
FT12-150 12 150 565 22.24  110 4.33  288 11.34  288 11.34  43.5  95.90  F9(M8)
FT12-150A 12 150 565 22.24  110 4.33  288 11.34  288 11.34  39.5  87.08  F9(M8)
FT12-160 12 160 565 22.24  110 4.33  288 11.34  288 11.34  47.0  103.62  F14(M8)
FT12-180 12 180 560 22.05  125 4.92  316 12.44  316 12.44  52.0  114.64  F14(M8)
FT12-180A 12 180 560 22.05  125 4.92  316 12.44  316 12.44  48.0  105.82  F9(M8)
FT12-185 12 185 560 22.05  125 4.92  316 12.44  316 12.44  54.0  119.05  F14(M8)
FT12-200 12 200 560 22.05  125 4.92  316 12.44  316 12.44  57.5  126.76  F14(M8)
FT12-200A 12 200 560 22.05  125 4.92  316 12.44  316 12.44  54.0  119.05  F14(M8)
FT12-100L 12 100 410 16.14  109 4.29  285 11.22  293 11.54  33.0  72.75  F9(M8)
FT12-150L 12 150 565 22.24  110 4.33  288 11.34  288 11.34  47.0  103.62  F9(M8)
FT12-185L 12 185 560 22.05  125 4.92  316 12.44  316 12.44  60.0  132.28  F9(M8)

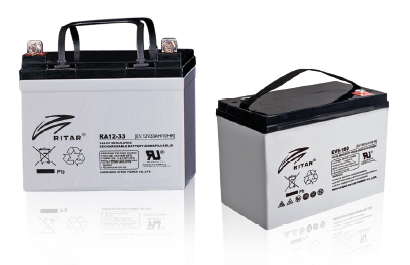

EV SERIES

Electric Vehicle VRLA Batteries

EV (Electric Vehicle) series is specially designed for frequent deep cycle discharge. By using the specially designed active material and strong grids, the EV series sealed lead acid battery offers reliable performance in high load situations and can deliver more than 300 cycles at 100% DOD. Suitable for mobility scooters, electric wheel chairs, golf buggies etc.

  • >

    Voltage class: 6V/8V/12V

  • >
    Capacity range: 10Ah~400Ah

  • >
    Designed for light electric vehicle use

  • >
    Patent EV deep cycle formula of active material

  • >
    High performance AGM separator

  • >
    Excellent cycle life and recovery performance in deep cycle use

  • >
    Application: electric motorcycles, electric bikes, golf cars, wheelchairs, electric tractors, etc.

MODELNOMINAL VOLTAGECAPACITYDIMENSIONSWEIGHT
(V)(Ah) LengthWidthHeightTotal Height(Kg)(Lbs)
mminchmminchmminchmminch
EV12-10 12 10 C20/1.75VPC 151 5.94  98 3.86  95 3.74  101 3.98  3.85  8.49
EV12-12 12 12 C20/1.75VPC 151 5.94  98 3.86  95 3.74  101 3.98  4.20  9.26
EV12-14 12 14 C20/1.75VPC 151 5.94  98 3.86  99 3.90  105 4.13  4.20  9.26
EV12-18 12 18 C20/1.75VPC 181 7.13  77 3.03  167 6.57  167 6.57  5.90  13.01
EV12-22 12 22 C20/1.75VPC 181 7.13  77 3.03  167 6.57  167 6.57  6.20  13.67
EV12-22 12 22 C20/1.75VPC 181 7.13  77 3.03  170 6.69  170 6.69  6.20  13.67
EV12-24 12 24 C20/1.75VPC 182.5 7.19  78.5 3.09  170 6.69  170 6.69  7.00  15.43
EV12-24X 12 24 C20/1.75VPC 181 7.13  77 3.03  170 6.69  170 6.69  7.00  15.43
EV12-26 12 26 C20/1.75VPC 166 6.54  176 6.93 125 4.92  125 4.92  8.60  18.96
EV6-180 6 180 C10/1.80VPC 306 12.05  168 6.61  220 8.66  227 8.94  28.0  61.73
EV6-200S 6 200 C20/1.75VPC 306 12.05  168 6.61  220 8.66  227 8.94  29.0  63.93
EV6-200 6 200 C10/1.80VPC 322 12.68  177.5 6.99  226 8.90  231 9.09  30.0  66.14
EV6-205 6 205 C10/1.80VPC 260 10.24  180 7.09  245 9.65  264 10.39  29.0  63.93
EV6-225S 6 225 C20/1.75VPC 260 10.24  180 7.09  245 9.65  264 10.39  31.5  69.44
EV6-210 6 210 C10/1.80VPC 322 12.68  177.5 6.99  226 8.90  231 9.09  32.0  70.55
EV6-220 6 220 C10/1.80VPC 306 12.05  168 6.61  220 8.66  227 8.94  32.0  70.55
EV6-225 6 225 C10/1.80VPC 260 10.24  180 7.09  263 10.35  282 11.10  32.0  70.55
EV6-240 6 240 C10/1.80VPC 260 10.24  180 7.09  263 10.35  282 11.10  35.3  77.82
EV6-310 6 310 C10/1.80VPC 295 11.61  178 7.01  346 13.62  364 14.33  44.5  98.10
EV6-335 6 335 C10/1.80VPC 295 11.61  178 7.01  346 13.62  364 14.33  48.0  105.82
EV6-400 6 400 C10/1.80VPC 295 11.61  178 7.01  404 15.91  423 16.65  57.0  125.66
EV8-170SA 8 157 C10/1.80VPC 260 10.24  182 7.17  267 10.51  272 10.71  31.5  69.44
EV8-170 8 170 C10/1.80VPC 260 10.24  182 7.17  295 11.61  314 12.36  34.5  76.06
EV8-170S 8 170 C10/1.80VPC 260 10.24  182 7.17  267 10.51  272 10.71  34.5  76.06
EV8-200 8 200 C10/1.80VPC 260 10.24  182 7.17  295 11.61  314 12.36  38.0  83.77
EV12-33 12 33 C10/1.80VPC 195 7.68  130 5.12  155 6.10  168 6.61  9.6  21.16
EV12-33H 12 33 C10/1.80VPC 195 7.68  130 5.12  155 6.10  168 6.61  10.0  22.05
EV12-45 12 45 C10/1.80VPC 198 7.80  166 6.54  169 6.65  169 6.65  14.6  32.19
EV12-55 12 55 C10/1.80VPC 229 9.02  138 5.43  211 8.31  216 8.50  16.5  36.38
EV12-60S 12 60 C10/1.80VPC 250 9.84  160 6.30  178 7.01  183 7.20  18.7  41.23
EV12-60 12 60 C10/1.80VPC 260 10.24  169 6.65  180 7.09  185 7.28  18.7  41.23
EV12-75 12 75 C10/1.80VPC 260 10.24  169 6.65  211 8.31  216 8.50  22.5  49.60
EV12-100S 12 100 C10/1.80VPC 306.5 12.07  168.5 6.63  210 8.27  215 8.46  30.0  66.14
EV12-110 12 110 C10/1.80VPC 328 12.91  172 6.77  215 8.46  220 8.66  30.5  67.24
EV12-120 12 120 C10/1.80VPC 407 16.02  177 6.97  225 8.86  225 8.86  36.5  80.47
EV12-150 12 150 C10/1.80VPC 483 19.02  170 6.69  241 9.49  241 9.49  44.5  98.10
EV12-180 12 180 C10/1.80VPC 532 20.94  207 8.15  214 8.43  219 8.62  53.0  116.84
EV12-180S 12 180 C10/1.80VPC 483 19.02  170 6.69  241 9.49  241 9.49  52.0  114.64
EV12-200 12 200 C10/1.80VPC 522 20.55  240 9.45  219 8.62  224 8.82  61.0  134.48
EV12-215 12 215 C20/1.75VPC 382 15.04  179 7.05  351 13.82  370 14.57  63.5  139.99
EV12-215S 12 215 C20/1.75VPC 382 15.04  179 7.05  351 13.82  370 14.57  63.5  139.99
EV12-240 12 240 C10/1.80VPC 522 20.55  240 9.45  219 8.62  224 8.82  65.0  143.30
EV12-280 12 280 C20/1.75VPC 521 20.51  268 10.55  220 8.66  225 8.86  78.0  171.96
EV12-300 12 300 C20/1.75VPC 521 20.51  268 10.55  220 8.66  225 8.86  78.0  171.96

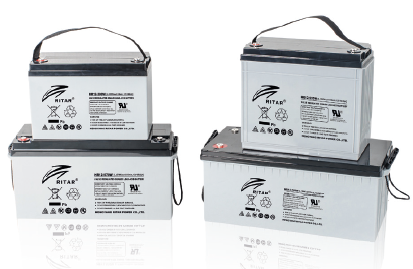

HR SERIES

High Rate Discharge VRLA Batteries

HR (High Rate) series is especially designed for heavy load discharge applications with 8 to 15 years design life in float service. By using strong grids and specially designed active material the HR series offers stable performance during high current discharge requirements .The HR series offers 30% more power output than the standard range. Suitable for UPS/EPS,  data centers  where high current loads are required.

  • >

    Voltage class: 6V/12V

  • >
    Capacity range: 16W~850W

  • >
    Superior energy density and very high power output

  • >
    Low self-discharge performance

  • >
    Wide operation temperature range

  • >
    Long design life

  • >
    Suitable for UPS/EPS, data centers where high current loads are required

MODELNOMINAL VOLTAGECAPACITYDIMENSIONSWEIGHTTERMINAL
(V)(Ah) LengthWidthHeightTotal Height(Kg)(Lbs)
mminchmminchmminchmminch
HR6-16W 6 16 70 2.76  47 1.85  99 3.90  105 4.13  0.68  1.50  F2
HR6-18W 6 18 70 2.76  47 1.85  99 3.90  105 4.13  0.70  1.54  F2
HR6-20W 6 20 70 2.76  47 1.85  99 3.90  105 4.13  0.72  1.59  F2
HR6-22W 6 22 70 2.76  47 1.85  99 3.90  105 4.13  0.75  1.65  F2
HR6-28W 6 28 151 5.94  34 1.34  94 3.70  100 3.94  1.10  2.43  F2
HR6-32W 6 32 151 5.94  34 1.34  94 3.70  100 3.94  1.15  2.54  F2
HR6-36W 6 36 151 5.94  34 1.34  94 3.70  100 3.94  1.35  2.98  F2
HR12-16W 12 16 90 3.54  70 2.76  101 3.98  107 4.21  1.32  2.91  F2
HR12-18W 12 18 90 3.54  70 2.76  101 3.98  107 4.21  1.50  3.31  F2
HR12-20W 12 20 90 3.54  70 2.76  101 3.98  107 4.21  1.51  3.33  F2
HR12-20BW 12 20 151 5.94  50 1.97  95 3.74  101 3.98  1.6  3.53  F2
HR12-22BW 12 22 151 5.94  50 1.97  95 3.74  101 3.98  1.75  3.86  F2
HR12-22W 12 22 90 3.54  70 2.76  101 3.98  107 4.21  1.55  3.42  F2
HR12-28W 12 28 151 5.94  65 2.56  94 3.70  100 3.94  2.08  4.59  F2
HR12-32W 12 32 151 5.94  65 2.56  94 3.70  100 3.94  2.20  4.85  F2
HR12-36W 12 36 151 5.94  65 2.56  94 3.70  100 3.94  2.45  5.40  F2
HR12-48W 12 48 151 5.94  98 3.86  95 3.74  101 3.98  3.15  6.94  F2
HR12-50W 12 50 181 7.13  77 3.03  167 6.57  167 6.57  4.20  9.26   F13-BP(M5)
HR12-60W 12 60 181 7.13  77 3.03  167 6.57  167 6.57  4.70  10.36   F13-BP(M5)
HR12-70W 12 70 181 7.13  77 3.03  167 6.57  167 6.57  5.35  11.79   F13-BP(M5)
HR12-80W 12 80 181 7.13  77 3.03  167 6.57  167 6.57  6.20  13.67   F13-BP(M5)
HR12-88W 12 88 181 7.13  77 3.03  167 6.57  167 6.57  6.20  13.67  F13-BP(M5)/F18(M5)
HR12-96W 12 96 166 6.54  176 6.93  125 4.92  125 4.92  8.10  17.86  F13-BP(M5)
HR12-104W 12 104 166 6.54  176 6.93  125 4.92  125 4.92  8.60  18.96  F13-BP(M5)
HR12-125W 12 125 195 7.68  130 5.12  155 6.10  168 6.61  10.0  22.05  F11(M6)
HR12-150W 12 150 198 7.80  166 6.54  169 6.65  169 6.65  12.4  27.34  F11(M6)
HR12-200W 12 200 229 9.02  138 5.43  211 8.31  216 8.50  16.5  36.38  F11(M6)
HR12-200WA 12 200 229 9.02  138 5.43  211 8.31  216 8.50  15.5  34.17  F11(M6)
HR12-240W 12 240 350 13.78  167 6.57  182 7.17  182 7.17  19.5  42.99  F11(M6)
HR12-240WA 12 240 350 13.78  167 6.57  182 7.17  182 7.17  17.5  38.58 F11(M6)
HR12-280W 12 280 260 10.24  169 6.65  211 8.31  216 8.50  24.8  54.67  F11(M6)
HR12-280WA 12 280 260 10.24  169 6.65  211 8.31  216 8.50  24.5  54.01  F11(M6)
HR12-340W 12 340 306.5 12.07  168.5 6.63  210 8.27  215 8.46  29.0  63.93  F12(M8)
HR12-340WA 12 340 306.5 12.07  168.5 6.63  210 8.27  215 8.46  29.0  63.93  F12(M8)
HR12-380W 12 380 328 12.91  172 6.77  215 8.46  220 8.66  30.5  67.24  F12(M8)
HR12-380WA 12 380 328 12.91  172 6.77  215 8.46  220 8.66  29.0  63.93  F12(M8)
HR12-380SW 12 380 306.5 12.07  168.5 6.63  210 8.27  215 8.46  30.0  66.14  F12(M8)
HR12-450W 12 450 407 16.02  177 6.97  225 8.86  225 8.86  36.5  80.47  F12(M8)
HR12-450WA 12 450 407 16.02  177 6.97  225 8.86  225 8.86  34.5  76.06  F12(M8)
HR12-520W 12 520 340 13.39  173 6.81  280 11.02  287 11.30  44.0  97.00  F12(M8)
HR12-520WA 12 520 340 13.39  173 6.81  280 11.02  287 11.30  41.0  90.39  F12(M8)
HR12-580W 12 580 340 13.39  173 6.81  280 11.02  287 11.30  47.0  103.62 F12(M8)
HR12-580WA 12 580 340 13.39  173 6.81  280 11.02  287 11.30  43.0  94.8 F12(M8)
HR12-570W 12 570 483 19.02  170 6.69  241 9.49  241 9.49  46.0  101.41  F12(M8)
HR12-570WA 12 570 483 19.02  170 6.69  241 9.49  241 9.49  43.0  94.8 F12(M8)
HR12-570SW 12 570 340 13.39  173 6.81  280 11.02  287 11.30  45.0  99.21  F12(M8)
HR12-620W 12 620 532 20.94  207 8.15  214 8.43  219 8.62  56.0  123.46  F10(M8)
HR12-620WA 12 620 532 20.94  207 8.15  214 8.43  219 8.62  53.0  116.84  F10(M8)
HR12-650W 12 650 522 20.55  240 9.45  219 8.62  224 8.82  61.0  134.48  F10(M8)
HR12-650WA 12 650 522 20.55  240 9.45  219 8.62  224 8.82  58.0  127.87  F10(M8)
HR12-690W 12 690 522 20.55  240 9.45  219 8.62  224 8.82  63.5  139.99  F10(M8)
HR12-690WA 12 690 522 20.55  240 9.45  219 8.62  224 8.82  61.0  134.48  F10(M8)
HR12-780W 12 780 522 20.55  240 9.45  219 8.62  224 8.82  72.0  158.73  F10(M8)
HR12-850W 12 850 521 20.51  268 10.55  220 8.66  225 8.86  80.5  177.47  F10(M8)
HR2-500W 2 500 171 6.73 111 4.37 328 12.91 351 13.82  11 24.25 F10(M8)
HR2-650W 2 650 171 6.73  111 4.37 328 12.91 351 13.82  14 30.86 F10(M8)
HR2-750W 2 750 171 6.73  150 5.91 331 13.03 353 13.90  16 35.27 F10(M8)
HR2-1000W 2 1000 171 6.73  150 5.91 331 13.03 353 13.90  19 41.89 F10(M8)
HR2-1250W 2 1250 211 8.31 176 6.93 328 12.91 351 13.82  25.5 56.22 F10(M8)
HR2-1500W 2 1500 241 9.49  172 6.77 331 13.03 353 13.90  29.5 65.04 F10(M8)
HR2-2000W 2 2000 301 11.85  175 6.89 331 13.03 353 13.90  38.5 84.88 F10(M8)
HR2-2500W 2 2500 410 16.14  175 6.89 328 12.91 351 13.82  51 112.43 F10(M8)
HR2-3000W 2 3000 473 18.62  174 6.85 331 13.03 353 13.90  59.5 131.17 F10(M8)
HR2-3200W 2 3200 473 18.62  174 6.85 331 13.03 353 13.90  60.5 133.38 F10(M8)

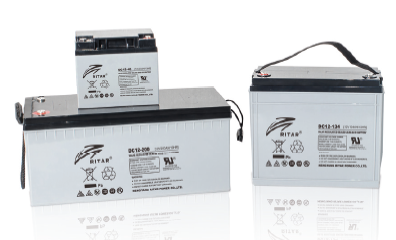

DC SERIES

DC (AGM Deep Cycle) series is specially designed for frequent cyclic discharge. By using strong grids and specially designed active material, the DC series battery offers 30% more cyclic life than the standby series. It is suitable for UPS, solar & wind energy, telecom system, electric power system, electric vehicles, golf cars, etc.

  • >

    Voltage class: 2V/6V/12V

  • >
    Capacity range: 26Ah~3000Ah

  • >
    Superior deep cycle design

  • >
    Suitable for solar & wind energy, UPS, telecom systems, electric power systems, control systems, golf cars, etc.


MODELNOMINAL VOLTAGECAPACITYDIMENSIONSWEIGHTTERMINAL
(V)(Ah) LengthWidthHeightTotal Height(Kg)(Lbs)
mminchmminchmminchmminch
DC12-26 12 26 C20/1.75VPC 166 6.54  176 6.93  125 4.92  125 4.92  8.10  17.86  F3(M5) / F13-BP(M5)/T24(M5)
DC12-26S 12 26 C20/1.75VPC 165 6.50  125 4.92  174 6.85  174 6.85  8.30  18.30  F7(M8) / F11(M6)
DC12-28S 12 28 C20/1.75VPC 165 6.50  125 4.92  174 6.85  174 6.85  8.80  19.40  F7(M8) / F11(M6)
DC6-180 6 180 C20/1.75VPC 306 12.05  168 6.61  220 8.66  227 8.94  25.6  56.44  F12(M8)
DC6-200 6 200 C20/1.75VPC 322 12.68  177.5 6.99  226 8.90  231 9.09  29.0  63.93  F16(M8) / F14(M8)
DC6-225 6 225 C20/1.75VPC 322 12.68  177.5 6.99  226 8.90  231 9.09  30.5  67.24  F16(M8) / F14(M8)
DC6-225S 6 225 C20/1.75VPC 243 9.57  187 7.36  275 10.83  275 10.83  32.0  70.55  F14(M8)
DC12-30 12 30 C20/1.75VPC 195 7.68  130 5.12 155 6.10  168 6.61  8.9  19.62 F7(M8) / F11(M6)
DC12-40 12 40 C20/1.75VPC 198 7.80  166 6.54  169 6.65  169 6.65  12.4  27.34  F4(M5) / F11(M6)
DC12-40A 12 40 C20/1.75VPC 198 7.8 166 6.54 169 6.65 169 6.65 11.5 25.35 F4(M5) / F11(M6)
DC12-50 12 50 C20/1.75VPC 250 9.84  160 6.30  178 7.01  183 7.20  15.5  34.17  F11(M6) /F15(M6)
DC12-55 12 55 C20/1.75VPC 229 9.02  138 5.43  211 8.31  216 8.50  16.5  36.38  F15(M6) / F11(M6)
DC12-55A 12 55 C20/1.75VPC 229 9.02  138 5.43  211 8.31  216 8.50  15.0  33.07  F15(M6) / F11(M6)
DC12-65 12 65 C20/1.75VPC 350 13.78  167 6.57  182 7.17  182 7.17  19.5  42.99  F5(M8) / F11(M6)
DC12-75 12 75 C20/1.75VPC 260 10.24 169 6.65  211 8.31  216 8.50  22.5  49.60  F5(M8) / F11(M6)
DC12-80 12 80 C20/1.75VPC 350 13.78  167 6.57  182 7.17  182 7.17  22.3  49.16 F5(M8) / F11(M6)
DC12-100S 12 100 C20/1.75VPC 306.5 12.07  168.5 6.63  210 8.27  215 8.46  27.0  59.52  F15(M6) / F12(M8)
DC12-100SA 12 100 C20/1.75VPC 306.5 12.07  168.5 6.63  210 8.27  215 8.46  15.0  33.07 F15(M6) / F12(M8)
DC12-100 12 100 C20/1.75VPC 328 12.91  172 6.77  215 8.46  220 8.66  29.0  63.93  F5(M8) / F12(M8)
DC12-100A 12 100 C20/1.75VPC 328 12.91  172 6.77  215 8.46  220 8.66  27.5 60.63 F5(M8) / F12(M8)
DC12-120 12 120 C20/1.75VPC 407 16.02  177 6.97  225 8.86  225 8.86  33.5  73.85  F5(M8) / F12(M8)
DC12-120A 12 120 C20/1.75VPC 407 16.02  177 6.97  225 8.86  225 8.86  32 70.55 F5(M8) / F12(M8)
DC12-120S 12 114 C20/1.75VPC 328 12.91  172 6.77  215 8.46  220 8.66  30.0  66.14  F5(M8) / F12(M8)
DC12-120SA 12 114 C20/1.75VPC 328 12.91  172 6.77  215 8.46  220 8.66  29 63.93  F5(M8) / F12(M8)
DC12-134 12 134 C20/1.75VPC 340 13.39  173 6.81  280 11.02  287 11.30  39.0  85.98  F5(M8) / F12(M8)
DC12-145 12 145 C20/1.75VPC 340 13.39  173 6.81  280 11.02  287 11.30  41.5  91.49 F5(M8) / F12(M8)
DC12-150 12 150 C20/1.75VPC 483 19.02  170 6.69  241 9.49  241 9.49  44.0  97.00  F5(M8) / F12(M8)
DC12-150A 12 150 C20/1.75VPC 483 19.02  170 6.69  241 9.49  241 9.49  40.5 89.29 F5(M8) / F12(M8)
DC12-160 12 160 C20/1.75VPC 532 20.94  207 8.15  214 8.43  219 8.62  48.0  105.82  F16(M8) / F12(M8)
DC12-160A 12 160 C20/1.75VPC 532 20.94  207 8.15  214 8.43  219 8.62  46.0  101.41  F16(M8) / F12(M8)
DC12-180 12 180 C20/1.75VPC 532 20.94  207 8.15  214 8.43  219 8.62  51 112.43 F16(M8) / F12(M8)
DC12-180A 12 180 C20/1.75VPC 532 20.94  207 8.15  214 8.43  219 8.62  48.5  106.92  F16(M8) / F12(M8)
DC12-190 12 190 C20/1.75VPC 532 20.94  207 8.15  214 8.43  219 8.62  56.0  123.46  F16(M8) / F12(M8)
DC12-190H 12 190 C20/1.75VPC 532 20.94  207 8.15  214 8.43  219 8.62  61.5 135.58  F16(M8) / F12(M8)
DC12-200 12 200 C20/1.75VPC 522 20.55  240 9.45  219 8.62  224 8.82  59.0  130.07  F16(M8) / F10(M8)
DC12-200A 12 200 C20/1.75VPC 522 20.55  240 9.45  219 8.62  224 8.82  56.0  123.46  F16(M8) / F10(M8)
DC12-225 12 225 C20/1.75VPC 522 20.55  240 9.45  219 8.62  224 8.82  63 138.89  F16(M8) / F10(M8)
DC12-230 12 230 C20/1.75VPC 521 20.51  269 10.59  204 8.03  209 8.23  67.0  147.71  F10(M8)
DC12-260 12 260 C20/1.75VPC 521 20.51  268 10.55  220 8.66  225 8.86  72 158.73  F14(M8)
DC12-260H 12 260 C20/1.75VPC 521 20.51  268 10.55  220 8.66  225 8.86  77.0  169.75  F14(M8)
DC2-200 2 200 C10/1.80VPC 170 6.69  106 4.17  330 12.99  342 13.46  13.1  28.88  F10(M8)
DC2-250 2 250 C10/1.80VPC 170 6.69  106 4.17  330 12.99  342 13.46  15.1  33.29  F10(M8)
DC2-300 2 300 C10/1.80VPC 170 6.69  150 5.91  330 12.99  342 13.46  18.3  40.34  F10(M8)
DC2-350 2 350 C10/1.80VPC 170 6.69  150 5.91  330 12.99  342 13.46  20.3  44.75  F10(M8)
DC2-400 2 400 C10/1.80VPC 196 7.72  171 6.73  330 12.99  342 13.46  25.0  55.11  F10(M8)
DC2-450 2 450 C10/1.80VPC 196 7.72  171 6.73  330 12.99  342 13.46  27.0  59.52  F10(M8)
DC2-500 2 500 C10/1.80VPC 241 9.49  171 6.73  330 12.99  342 13.46  29.5  65.04  F10(M8)
DC2-600 2 600 C10/1.80VPC 285 11.22  171 6.73  330 12.99  342 13.46  36.5  80.47  F10(M8)
DC2-650 2 650 C10/1.80VPC 285 11.22  171 6.73  330 12.99  342 13.46  40.0  88.18  F10(M8)
DC2-750 2 750 C10/1.80VPC 383 15.08  171 6.73  330 12.99  342 13.46  46.0  101.41  F10(M8)
DC2-800 2 800 C10/1.80VPC 383 15.08  171 6.73  330 12.99  342 13.46  50.0  110.43  F10(M8)
DC2-1000 2 1000 C10/1.80VPC 471 18.54  171 6.73  330 12.99  342 13.46  60.5  133.38  F10(M8)
DC2-1200 2 1200 C10/1.80VPC 471 18.54  171 6.73  330 12.99  342 13.46  66.0  145.5 F10(M8)
DC2-1500 2 1500 C10/1.80VPC 355 13.98  337 13.27  330 12.99  342 13.46  91.0  200.62  F10(M8)
DC2-1800 2 1800 C10/1.80VPC 355 13.98  337 13.27  330 12.99  342 13.46  97.0  213.84  F10(M8)
DC2-2000 2 2000 C10/1.80VPC 476 18.74  337 13.27  330 12.99  342 13.46  116.0  255.73  F10(M8)
DC2-2500 2 2500 C10/1.80VPC 476 18.74  337 13.27  330 12.99  342 13.46  136.0  299.82  F10(M8)
DC2-3000 2 3000 C10/1.80VPC 696 27.40  340 13.39  330 12.99  342 13.46  178.0  392.42  F10(M8)
FT12-55D 12 55 C10/1.80VPC 291 11.46  106 4.17  230 9.06  230 9.06  18.0  39.68  F11(M6)
FT12-90D 12 90 C10/1.80VPC 562 22.13  114 4.49  188 7.40  188 7.40  26.5  58.42  F6(M8)
FT12-100D 12 100 C10/1.80VPC 508 20.00  110 4.33  236 9.29  236 9.29  28.5  62.83  F14(M8)
FT12-100SD 12 100 C10/1.80VPC 410 16.14  109 4.29  285 11.22  293 11.54  31.0  68.34  F9(M8)
FT12-105D 12 105 C10/1.80VPC 508 20.00  110 4.33  236 9.29  236 9.29  32.5  71.65  F14(M8)/F8(M6)
FT12-110D 12 110 C10/1.80VPC 410 16.14  109 4.29  285 11.22  293 11.54  31.2  68.78  F9(M8)
FT12-150D 12 150 C10/1.80VPC 565 22.24  110 4.33  288 11.34  288 11.34  43.5  95.90  F9(M8)
FT12-160D 12 160 C10/1.80VPC 565 22.24  110 4.33  288 11.34  288 11.34  47.0  103.62  F9(M8)
FT12-180D 12 180 C10/1.80VPC 560 22.05  125 4.92  316 12.44  316 12.44  52.0  114.64  F14(M8)
FT12-185D 12 185 C10/1.80VPC 560 22.05  125 4.92  316 12.44  316 12.44  56.0  123.46  F9(M8)
FT12-100LD 12 100 C10/1.80VPC 410 16.14  109 4.29  285 11.22  293 11.54  33.0  72.75  F9(M8)
FT12-150LD 12 150 C10/1.80VPC 565 22.24  110 4.33  288 11.34  288 11.34  43.5  95.90  F9(M8)
FT12-185LD 12 185 C10/1.80VPC 560 22.05  125 4.92  316 12.44  316 12.44  60.0  132.28  F9(M8)

OPzV SERIES

Tubular Gel VRLA Batteries

OPzV series is a Valve Regulated Lead Acid battery that adopts immobilized GEL and Tubular Plate technology to offer high reliability and performance. The Battery is designed and manufactured according to DIN standards and with die-casting positive grid and patent formula of active material. OPzV series exceeds DIN standard values with more than 20 years floating design life at 25℃ and is even more suitable for cyclic use under extreme operating conditions.

  • >

    Voltage class: 12V/2V

  • >
    Capacity range: 60Ah~3000Ah

  • >
    Tubular plates with Gel electrolyte provides super strong lifetime

  • >
    Wide operation temperature

  • >
    Application: solar & wind energy, UPS, control systems, telecom systems, electric power systems, emergency lighting, etc.

  • >
    Electrolyte gel is very stable and safe
  • >
    Flooded Electrolyte design
  • >
    High charge acceptance performance
  • >
    Equipped with double flame arrestor

MODELNOMINAL VOLTAGECAPACITYDIMENSIONSWEIGHTTERMINAL
(V)(Ah) LengthWidthHeightTotal Height(Kg)(Lbs)
mminchmminchmminchmminch
OPzV6-200 6 200 322 12.68  177.5 6.99  226 8.90  231 9.09  28.0  61.73   F16(M8)/F14(M8)
OPzV12-60 12 60 260 10.24  169 6.65  211 8.31  216 8.50  23.0  50.71   F11(M6)
OPzV12-80 12 80 328 12.91  172 6.77  215 8.46  220 8.66  30.0  66.14   F12(M8)
OPzV12-100 12 100 407 16.02  177 6.97  225 8.86  225 8.86  34.5  76.06   F12(M8)
OPzV12-120 12 120 483 19.02  170 6.69  241 9.49  241 9.49  44.6 98.32  F12(M8)
OPzV12-140 12 140 532 20.94  207 8.15  214 8.43  219 8.62  52.8  116.40   F12(M8)
OPzV12-160 12 160 532 20.94  207 8.15  214 8.43  219 8.62  57.0  125.66  F12(M8)
OPzV12-180 12 180 522 20.55  240 9.45  219 8.62  224 8.82  65.0  143.30   F10(M8)
OPzV12-200 12 200 521 20.51  268 10.55  220 8.66  225 8.86  69.5 153.22  F14(M8)
OPzV2-200 2 200 103 4.06  206 8.11  355 13.98  390 15.35  16.0  35.27  F10(M8)
OPzV2-250 2 250 124 4.88  206 8.11  355 13.98  390 15.35  19.5  42.99  F10(M8)
OPzV2-300 2 300 145 5.71  206 8.11  355 13.98  390 15.35  23.5  51.81  F10(M8)
OPzV2-350 2 350 124 4.88  206 8.11  470 18.50  505 19.88  27.0  59.52  F10(M8)
OPzV2-420 2 420 145 5.71  206 8.11  470 18.50  505 19.88  32.5  71.65  F10(M8)
OPzV2-500 2 490 166 6.54  206 8.11  470 18.50  505 19.88  38.0  83.77  F10(M8)
OPzV2-770 2 770 210 8.27  254 10.00  470 18.50  505 19.88  55.0  121.25  F10(M8)
OPzV2-600 2 600 145 5.71  206 8.11  645 25.39  680 26.77  45.0  99.21  F10(M8)
OPzV2-800 2 800 191 7.52  210 8.27  645 25.39  680 26.77  60.5  133.38  F10(M8)
OPzV2-1000 2 1000 233 9.17  210 8.27  645 25.39  680 26.77  73.5  162.04  F10(M8)
OPzV2-1200 2 1200 276 10.87  210 8.27  645 25.39  680 26.77  88.5  195.11  F10(M8)
OPzV2-1500 2 1500 275 10.83  210 8.27  795 31.30  830 32.68  104.5  230.38  F10(M8)
OPzV2-2000 2 2000 399 15.71  214 8.43  770 30.31  805 31.69  142.5  314.15  F10(M8)
OPzV2-2500 2 2500 487 19.17  212 8.35  770 30.31  805 31.69  180.5  397.93  F10(M8)
OPzV2-3000 2 3000 576 22.68  212 8.35  770 30.31  805 31.69  214.0  471.78  F10(M8)
OPzV2-400C 2 400 145 5.71  206 8.11  470 18.50  505 19.88  32.5  71.65  F10(M8)

DG SERIES

Deep Cycle GEL VRLA Batteries

DG (Deep Cycle GEL)series is pure GEL battery with 15~20 years floating design life, it is ideal for standby or frequent cyclic discharge applications under extreme environments.By using strong grids, high purity lead and patented Gel electrolyte, the DGseries offers excellent recovery after deep discharge under frequent cyclicdischarge use, and can deliver 400 cycles at 100% DOD. Suitable for solar,CATV, marine, RV and deep discharge UPS,communication , and telecommunication , etc.

  • >

    Voltage class: 2V/6V/12V

  • >
    Capacity range: 26Ah~3000Ah

  • >
    Designed for frequent cyclic charge and discharge applications under extreme environment.

  • >
    Suitable for solar & wind energy, UPS, telecom systems, electric power systems, control systems, golf cars, etc.

  • >
    Patented primary and secondary grid structure design
  • >
    High Porosity PE separator with glass fibre
  • >
    Safety valve equipped
  • >
    High strength battery container

MODELNOMINAL VOLTAGECAPACITYDIMENSIONSWEIGHTTERMINAL
(V)(Ah) LengthWidthHeightTotal Height(Kg)(Lbs)
mminchmminchmminchmminch
DG12-26 12 26 C20/1.75VPC 166 6.54  176 6.93  125 4.92  125 4.92  8.10  17.86  F3(M5) / F13-BP(M5)/T24(M5)
DG6-100 6 100 C20/1.75VPC 194 7.64 170 6.69 205 8.07 212 8.35 16.5 36.38 F14(M8)
DG6-150 6 150 C20/1.75VPC 260 10.24  180 7.09  245 9.65  252 9.92  22.5  49.60  F12(M8)
DG6-180 6 180 C20/1.75VPC 306 12.05  168 6.61  220 8.66  227 8.94  25.5  56.22  F12(M8)
DG6-200 6 200 C20/1.75VPC 322 12.68  177.5 6.99  226 8.90  231 9.09  28.0  61.73  F16(M8) / F14(M8)
DG6-200S 6 200 C20/1.75VPC 260 10.24  180 7.09  245 9.65  252 9.92  26.5  58.42  F12(M8)
DG6-225 6 225 C20/1.75VPC 322 12.68  177.5 6.99  226 8.90  231 9.09  32.0  70.55  F16(M8) / F14(M8)
DG6-225S 6 225 C20/1.75VPC 243 9.57  187 7.36  275 10.83  275 10.83  32.0  70.55  F14(M8)
DG6-280 6 280 C20/1.75VPC 295 11.61  178 7.01  346 13.62  351 13.82  41.7  91.93  F14(M8)
DG6-310 6 310 C20/1.75VPC 295 11.61  178 7.01  346 13.62 351 13.82  44.5  98.10  F14(M8)
DG6-335 6 335 C20/1.75VPC 295 11.61  178 7.01  346 13.62  351 13.82  45.5  100.31  F14(M8)
DG12-33 12 33 C20/1.75VPC 195 7.68  130 5.12  155 6.10  168 6.61  9.6 21.16  F7(M8) / F11(M6)
DG12-40 12 40 C20/1.75VPC 198 7.80  166 6.54  169 6.65  169 6.65  12.4  27.34  F4(M5) / F11(M6)
DG12-55 12 55 C20/1.75VPC 229 9.02  138 5.43  211 8.31  216 8.50  16.5  36.38  F15(M6) / F11(M6)
DG12-65 12 65 C20/1.75VPC 350 13.78  167 6.57  182 7.17  182 7.17  19.5  42.99  F5(M8) / F11(M6)
DG12-70 12 70 C20/1.75VPC 350 13.78  167 6.57  182 7.17  182 7.17  19.5 42.99  F5(M8) / F11(M6)
DG12-60 12 60 C20/1.75VPC 260 10.24  169 6.65  211 8.31  216 8.50  20.5  45.19  F15(M6) / F11(M6)
DG12-70S 12 70 C20/1.75VPC 260 10.24  169 6.65  211 8.31  216 8.50  21.5  47.40  F15(M6) / F11(M6)
DG12-75 12 75 C20/1.75VPC 260 10.24  169 6.65  211 8.31  216 8.50  22.5  49.60  F15(M6) / F11(M6)
DG12-75S 12 75 C20/1.75VPC 350 13.78  167 6.57  182 7.17  182 7.17  21.0  46.30  F5(M8) / F11(M6)
DG12-80S 12 80 C20/1.75VPC 328 12.91  172 6.77  215 8.46  220 8.66  23.5  51.81 F5(M8) / F12(M8)
DG12-100S 12 90 C20/1.75VPC 306.5 12.07  168.5 6.63  210 8.27  215 8.46  27.0  59.52  F15(M6) / F12(M8)
DG12-100 12 100 C20/1.75VPC 328 12.91  172 6.77  215 8.46  220 8.66  29.0  63.93  F5(M8) / F12(M8)
DG12-120 12 120 C20/1.75VPC 407 16.02  177 6.97  225 8.86  225 8.86  33.5  73.85  F5(M8) / F12(M8)
DG12-134 12 134 C20/1.75VPC 340 13.39  173 6.81  280 11.02  287 11.30  39.0  85.98  F5(M8) / F12(M8)
DG12-145 12 145 C20/1.75VPC 340 13.39  173 6.81  280 11.02  287 11.30  41.5  91.49 F5(M8) / F12(M8)
DG12-150 12 150 C20/1.75VPC 483 19.02  170 6.69  241 9.49  241 9.49  44.0  97.00  F5(M8) / F12(M8)
DG12-160S 12 160 C20/1.75VPC 483 19.02  170 6.69  241 9.49  241 9.49  48.0  105.82  F5(M8) / F12(M8)
DG12-160 12 160 C20/1.75VPC 532 20.94  207 8.15  214 8.43  219 8.62  48.0  105.82  F16(M8) / F12(M8)
DG12-180 12 180 C20/1.75VPC 532 20.94  207 8.15  214 8.43  219 8.62  51.0  112.43  F16(M8) / F12(M8)
DG12-200 12 200 C20/1.75VPC 522 20.55  240 9.45  219 8.62  224 8.82  58.0  127.87  F16(M8) / F10(M8)
DG12-225 12 225 C20/1.75VPC 522 20.55  240 9.45  219 8.62  224 8.82  63.0  138.89  F16(M8) / F10(M8)
DG12-230 12 230 C20/1.75VPC 521 20.51  269 10.59  204 8.03  209 8.23  67.0  147.71  F10(M8)
DG12-260 12 260 C20/1.75VPC 521 20.51  268 10.55  220 8.66  225 8.86  72.0  158.73  F14(M8)
FT12-55G 12 55 C20/1.75VPC 291 11.46  106 4.17  230 9.06  230 9.06  18.0  39.68  F11(M6)
FT12-90G 12 90 C20/1.75VPC 562 22.13  114 4.49  188 7.40  188 7.40  26.5  58.42  F6(M8)
FT12-100G 12 100 C20/1.75VPC 508 20.00  110 4.33  236 9.29  236 9.29  28.5  62.83  F14(M8)
FT12-105G 12 105 C20/1.75VPC 508 20.00  110 4.33  236 9.29  236 9.29  32.5  71.65  F14(M8)/F8(M6)
FT12-110G 12 110 C20/1.75VPC 410 16.14  109 4.29  285 11.22  293 11.54  31.2  68.78  F9(M8)
FT12-150G 12 150 C20/1.75VPC 565 22.24  110 4.33  288 11.34  288 11.34  43.5  95.90  F9(M8)
FT12-160G 12 160 C20/1.75VPC 565 22.24  110 4.33  288 11.34  288 11.34  47.0  103.62  F9(M8)
FT12-180G 12 180 C20/1.75VPC 560 22.05  125 4.92  316 12.44  316 12.44  52.0  114.64  F14(M8)

WANT TO FIND US?

Visit us in our office so we can offer our best deals

See our main office
Need Advice? Call Us Now.
